We are a valve manufacturer with high volume production capability.
A thermostatic head work can be installed on the delivery line (type H , depending on the seat model used by the radiator manufacturer) by screwing it directly onto the radiator inlet. H type lock shield radiator valves can be adapted to radiant plates, incorporating both the thermostatic valve with flow rate pre-regulation and the lock shield.

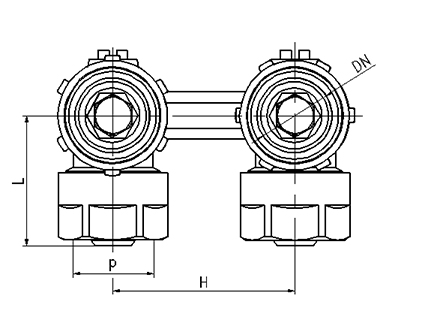

DN |
SIZE |
L(mm) |
H(mm) |
P |
15 |
1/2 |
36 |
50 |
1216 |
15 |
1/2 |
36 |
50 |
1620 |
Material: Forged brass
Port: 2-way
Fields of Applications: Water, Hot water
Maximum Working Pressure: 1.6Mpa
Control temperature range: 0 - 30°C
Working temperature: 0ºC to 120ºC (from 32°F to 248°F)
Connection way: Male and female Thread Connections Comply With ISO228 (BS2779), Other optional connection way: Clamp , solder , loose joint and PEX connection.
Certificate: CE ,SGS ,ISO9001
We are a leading Custom H Type Lock shield Radiator Valve Suppliers/Factory in the valve industry, with more than 25 years of experience, specializing in the field of HVAC system parts and brass valves. Huibo Valve has its own factory, which is located in Yuhuan County, Zhejiang Province, the hometown of brass valves in China.
Now as the top manufacturer of high quality HVAC system parts and brass valve, our main products cover brass manifold, stainless steel manifold, thermostatic radiator valve, manual radiator valve,balance valve, motorized valve, air vent, ball valve, gate valve, gas valve, check valve, brass fittings and so on with more than 40 series and 2000 varieties.
