Product description:

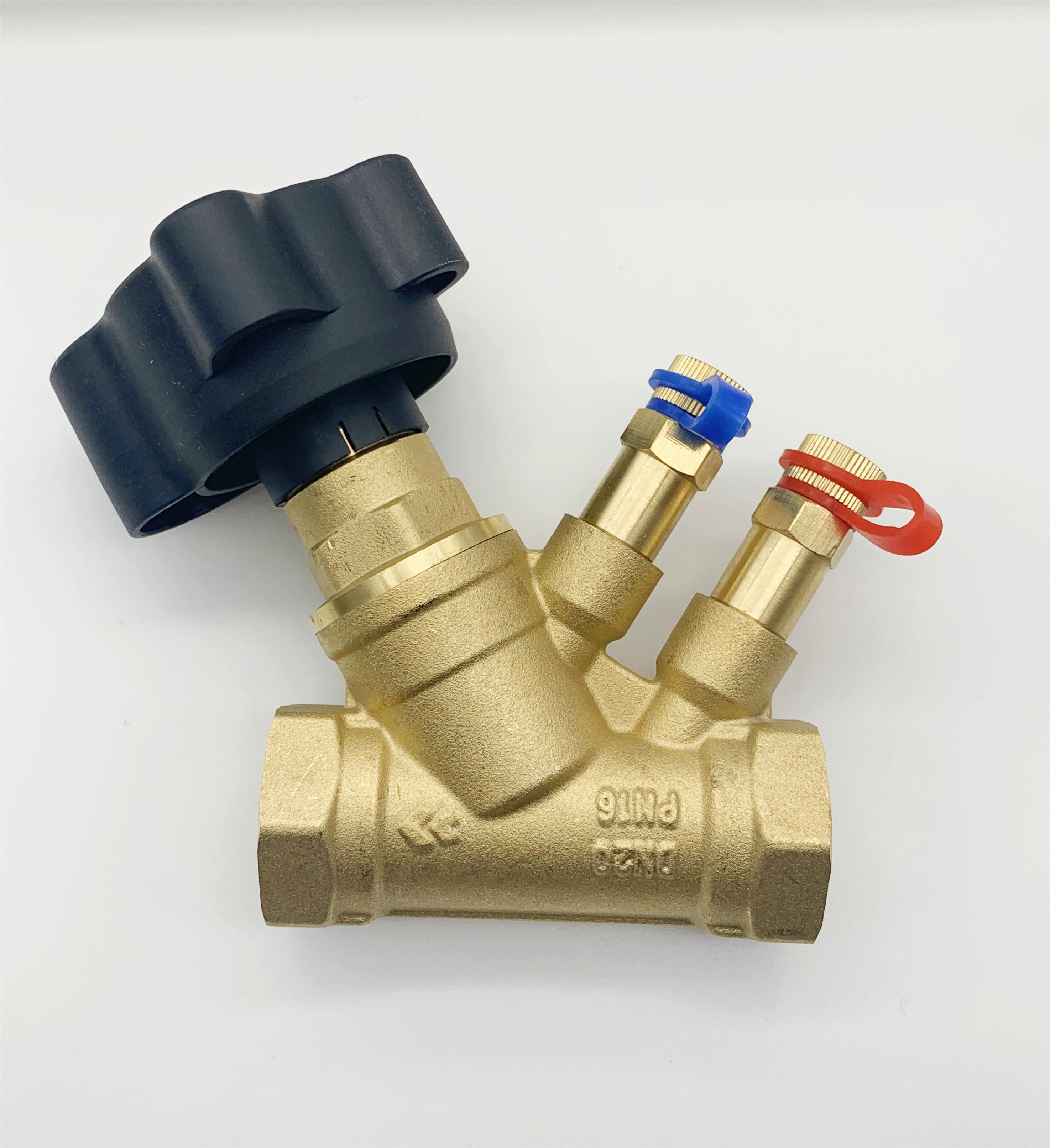

The static digital lock balance valve is an adjustable valve with digital lock special function. It is a static hydraulic working condition balance valve. The static digital lock balance valve adopts a DC type valve body structure with better equal percentage flow characteristics. The flow can be reasonably distributed, and the static digital lock balance valve is suitable for centralized quantity adjustment. The mass adjustment system for changing the flow rate and the phase change flow can effectively solve the problem of room temperature cold and heat unevenness existing in the heating system. At the same time, the pressure drop and flow rate can be accurately adjusted to improve the tube to improve the liquid flow state in the pipe network system, to achieve the liquid balance of the pipe network and to save the source.

Main specification:

DN Size L D H
15 1/2 77 60 96
20 3/4 82 60 99.5
25 1 90 60 104
32 1 1/4  103 60 111
40 1 1/2  116 60 120
50 2 128 60 135.5


Feature：

Ideal adjustment performance

Excellent cut-off function

Accurate to 1/10 lap open status display

Theoretical flow characteristic curve is an equal percentage characteristic curve

The special design of the valve core, good sealing performance, easy maintenance, etc.

High-pressure self-sealing pressure measuring nozzle, convenient pressure measurement

The pressure measuring nozzle is set at both ends of the fixing plate hole to ensure the pressure difference test is more accurate

The valve core and the stem are at an angle of 60 degrees to the valve axis, which makes the fluid mechanics of the medium better

The seal is made of special EPDM “O” type sealing ring to ensure no leakage, and the handle rotates smoothly.

Parameter：

Normal prussure：PN≤1.6Mpa

Working medium：Water, Ethylene glycol mixture

Working temperature：-20℃≤T≤120℃

Connection end：1/2"~2" female thread

Testing port connection end:1/4" female thread

  • Are you a trader or an manufacturer？

    We are a valve manufacturer with high volume production capability.

  • Can we get a sample before placing the order？

    Yes，we can provide the sample to you to examine and test.

  • What products can you offer？

    Our main products cover brass manifold, stainless steel manifold, thermostatic radiator valve, manual radiator valve, balance valve, motorized valve, air vent, ball valve, gate valve, gas valve, check valve, brass fittings and so on with more than 40 series and 2000 varieties.

  • What applications do your products relate to？

    Our products involve real estate construction, thermal company, gas system, HVAC, water system, engineering piping system, floor heating system, etc.

  • Can you do customized products？

    Y,we will develop and produce products according to the customers' drawings or samples.

  • How to ensure the quality of products？

    Firstly, when we purchase raw materials, we will strictly inspect raw materials. Secondly, there will be corresponding inspection after each process. For the finished products, we will do 100% full inspection according to customer requirements and international standards. And we have the most advanced test instruments，such as magnetic resonance spectroscopy, high and low temperature test instrument, blasting test instrument, anti-torsion test instrument, balance flow test instrument, sealing measurement instrument, life tester, etc., ensure the quality of products.

  • Do you provide warranty service for your products？

    Yes, our products with two years warranty of free replacement.

  • How to deliver the goods to us？

    Usually we will ship the goods to you by sea, because we are close to ningbo port, it is very convenient and efficient to ship goods to any other countries. Of course, if your goods are very urgent, we can ship by air, the ningbo airport and shanghai airport are also very nearby.
