We are a valve manufacturer with high volume production capability.

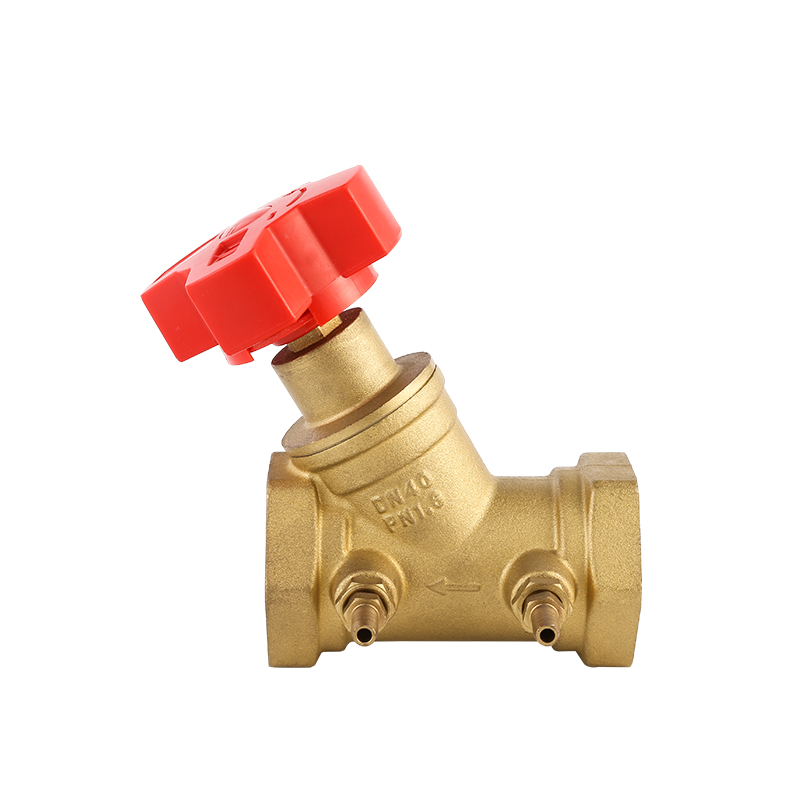

The digital lock balancing valve is suitable for various liquid piping systems and is an ideal new energy-saving valve.It features a graduated digital display that can be visually adjusted to any position and can be locked. Digital lock static balancing valve is mainly used in industrial and civil building heating systems. At present, there are hydraulic imbalances in some official website systems. At present, there are hydraulic imbalance problems in some official website systems. The SPF digital lock balance valve provides a means to solve this problem, which can accurately adjust the pressure and flow to improve the balance of the liquid in the network and save energy. In the double pipe network engineering transformation, energy can be saved and better results can be obtained.
DN(mm) |
Spec(Inch) |
L(mm) |
H(mm) |
G(mm) |
15 |
1/2" |
70 |
70 |
70 |
20 |
3/4'' |
75 |
70 |
70 |
25 |
1" |
85 |
75 |
70 |
32 |
1¼" |
93 |
77 |
70 |
40 |
1½" |
100 |
84 |
70 |
50 |
2" |
103 |
92 |
70 |
Nominal pressure: 1.6 MPa ( 2.5 MPa must be scheduled )
Medium temperature: 0°C ~ 120 °C
Working pressure: ≤ 1.6 MPa
Working medium: Suitable for hot and cold water,compressed air,oils, non-corrosive fluids and hydrocarbons in general.
Thread type: brass
End Connection: BSP, NPT
Thread standard: ISO228(equivalent to DIN 259 and BS2779)
We are a leading Custom 1/2′′-2′′inch Brass Digital Lock Balance Valve Suppliers/Factory in the valve industry, with more than 25 years of experience, specializing in the field of HVAC system parts and brass valves. Huibo Valve has its own factory, which is located in Yuhuan County, Zhejiang Province, the hometown of brass valves in China.
Now as the top manufacturer of high quality HVAC system parts and brass valve, our main products cover brass manifold, stainless steel manifold, thermostatic radiator valve, manual radiator valve,balance valve, motorized valve, air vent, ball valve, gate valve, gas valve, check valve, brass fittings and so on with more than 40 series and 2000 varieties.
